780 Deadbolt Cylinder Change

  1. Simply insert your master/control key.
  2. Next, rotate the master/control key counterclockwise until you reach the 7:30 position as shown.

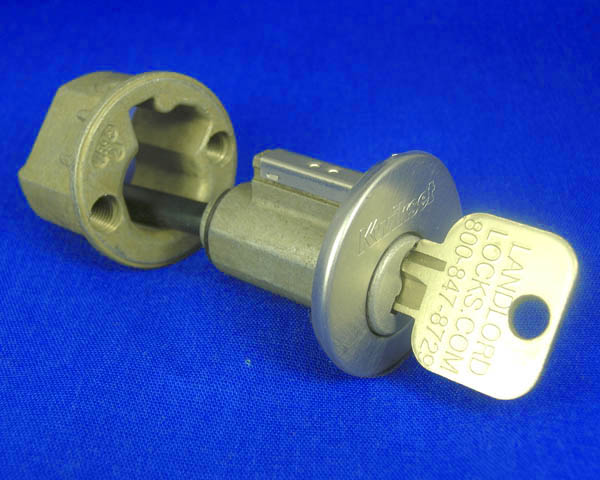

  3. Gently pull the cylinder from the deadbolt as shown.

    Once you have the cylinder removed, you can install a differently keyed cylinder.

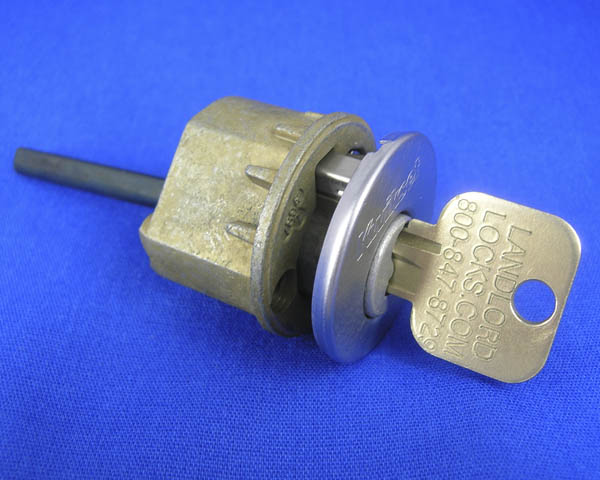

    To remove the cylinder from the housing of a lock that has not yet been installed, grip
    the cylinder housing firmly with one hand and remove the cylinder as shown in instructions above.
